Upper Valley ADU

Upper Valley Area, NH

Architect: MA+KE Architects

Project Description:

This small accessory dwelling unit features an air-source heat pump system with a concealed ducted fan coil that serves the living room and two wall-mounted heads in bedrooms. A right-sized energy recovery ventilator provides continuous exhaust for the bathroom and laundry closet while supplying fresh air to the bedrooms and living area. A small electric radiant floor system at the lower level provides supplemental heat for the entry and bathroom. A concealed dehumidifier maintains comfortable humidity levels throughout the summer months.

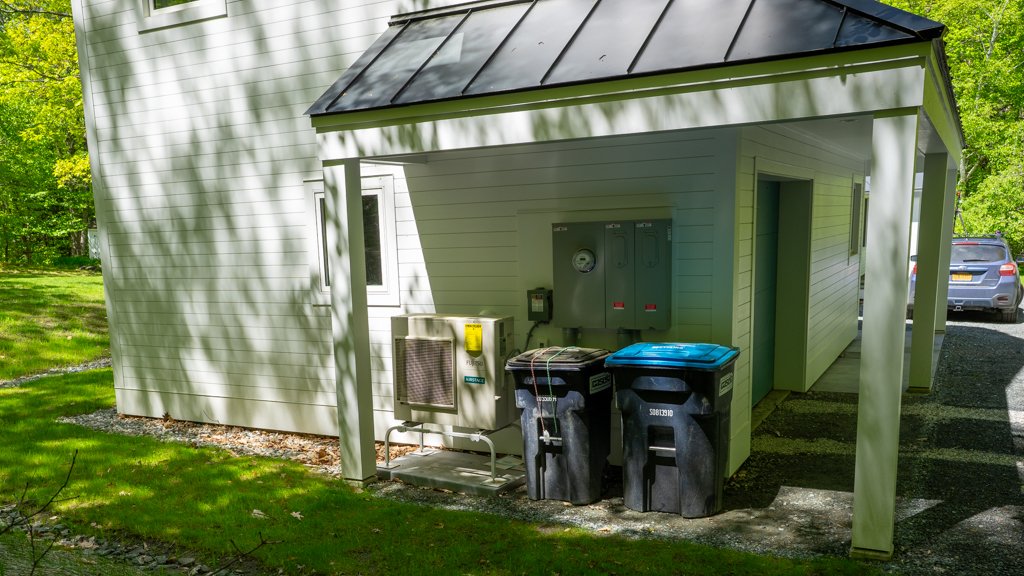

  • ADU exterior with kitchen exhaust wall cap visible.

  • View of kitchen from the living area. The loft space has grilles for fresh air, supply air, and the exhaust hood.

  • View of living room and bedroom door from kitchen. No mechanicals exist outside of loft space above bedroom.

  • Bathroom shower with round ERV exhaust grille

  • Bedroom wall mounted heat pump head. 100% fresh air from ERV is provided separately.

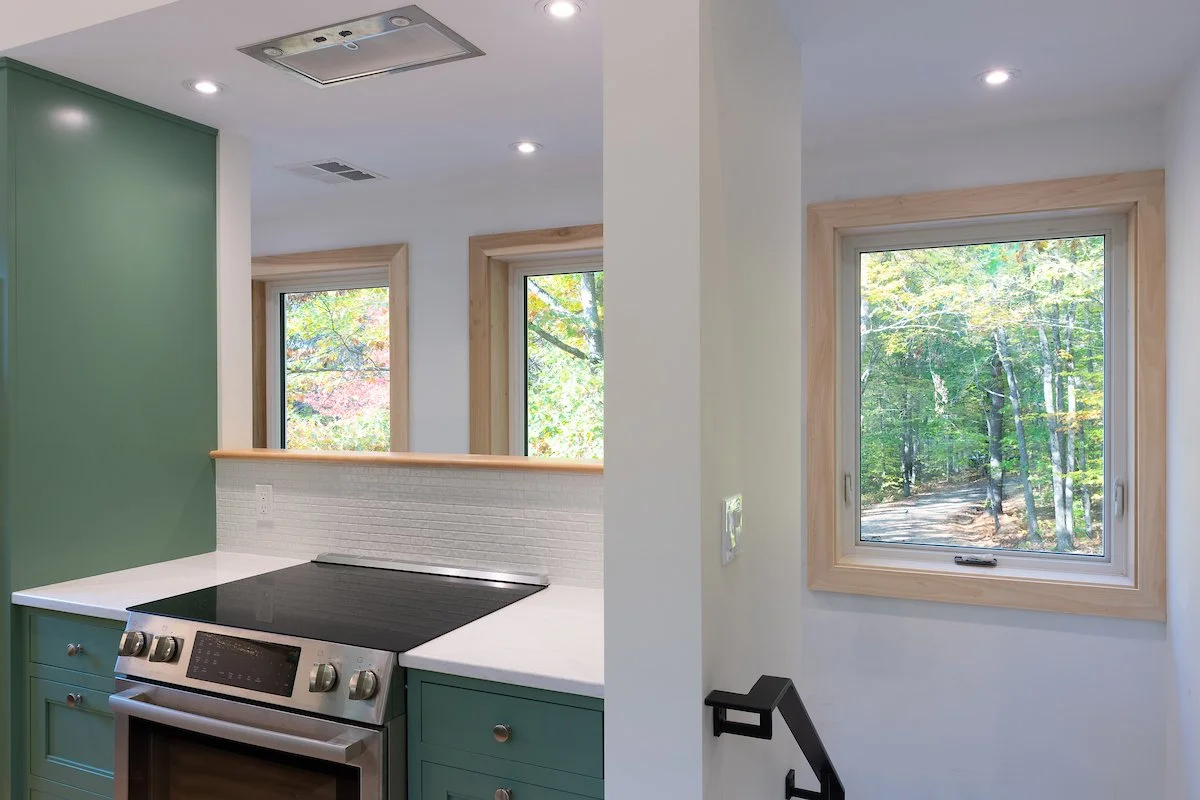

  • Recessed high kitchen hood preserves view over top of stove to back windows.

  • Dehumidifier return, fresh air, return air, and supply air grilles provided from central loft space.

  • Heat pump fancoil unit and dehumidifier in mechanical loft.

  • Energy recovery ventilator provides balanced exhaust and fresh air for the building.

  • Heat pump return air grille centered over bedroom window.

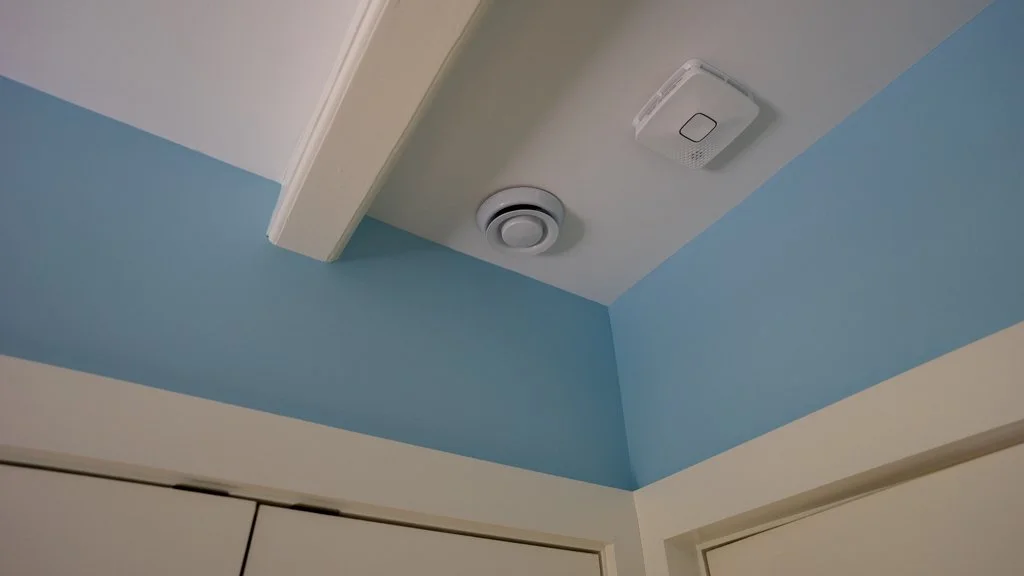

  • Fresh air grille in bedroom.
